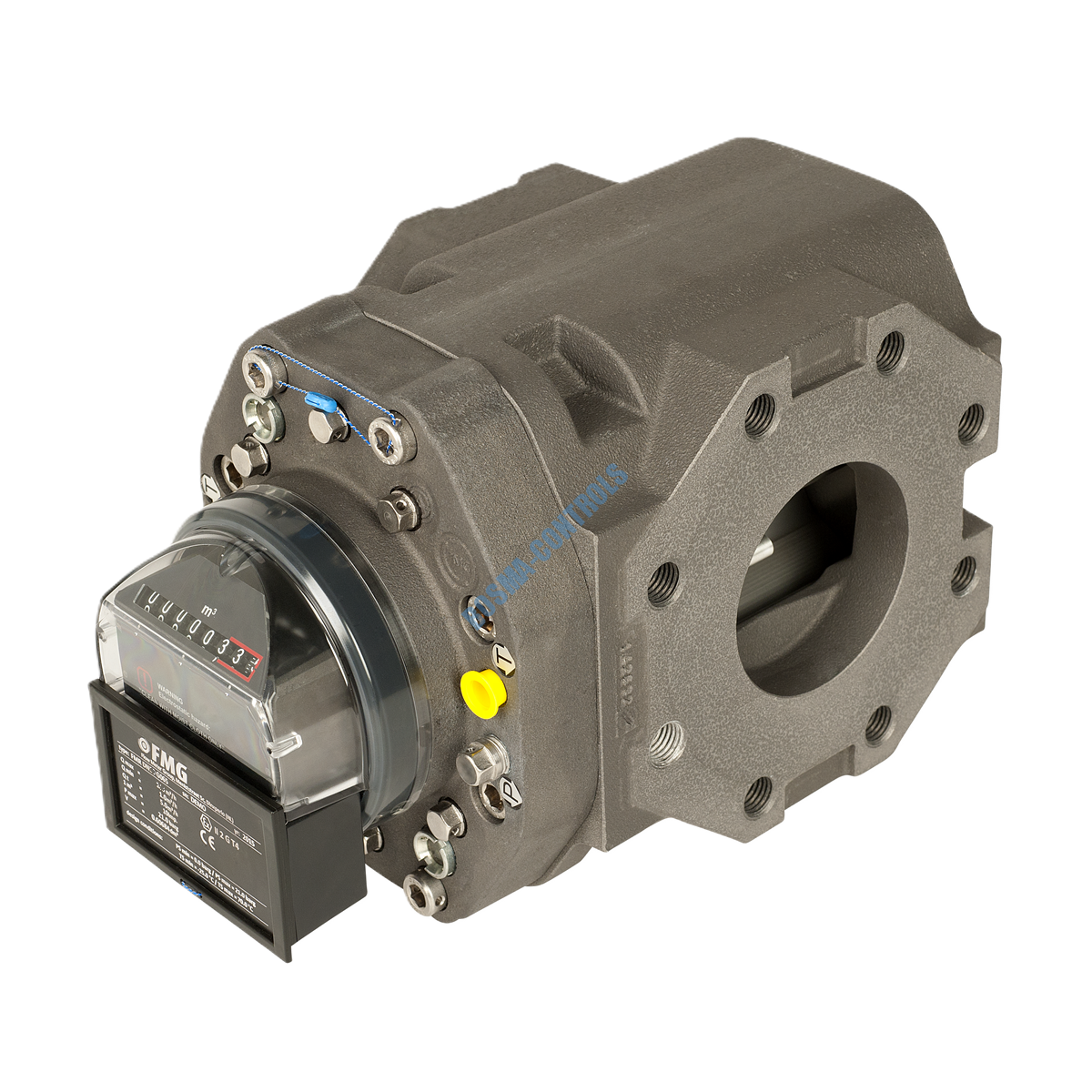

FMR-G100-DN80

 1.685,00

Artikelnummer: FMR-G100-DN80-1 Categorie:

FMR Rotorgasmeter G100
Meetbereik: 1-160m³/h
Aansluiting DN80-PN16
Bouwlengte: 171mm
Uitgang: LF

Beschrijving

  1. FMR-G100-DN80
  2. model: FMR G100 DN080 – PN 16 0.97dm³
  3. size / flange connection: DN080 – PN 16
  4. meterbody material: Aluminium
  5. coating: Standard Hard Anodized
  6. installation length: 171 mm
  7. volume: 0.97 dm³
  8. meter shape: Uni-Directional (except Bottom-Top)
  9. flow direction preset: Left-Righ
  10. approval: T10372-MID: Class 1 – Standard accuracy according to OIML R137
  11. measuring range: G100: Qmax = 160 m³/h, Qmin = 1 m³/h
  12. medium: Natural gas (CH4)
  13. classification: Group 1
  14. pressure range: 0 – 16 bar
  15. temperature range: -25 °C / 55 °C
  16. press. measuring point: 2x 1/4NPT Plugged (sealable)
  17. temp. measuring point: 1x External Thermowell 1/4NPT with Swivle, 1x Plugged (sealable)
  18. high frequency pulser: Prepared for Optical sensor
  19. lubrication option: —
  20. mounted options: n.a.
  21. index head type: Basic Index (IP67)
  22. electronic options: 2xLF + 1xTamper – 3711 Reed Switch Unit
  23. mechanical options: n.a.
  24.  –
  25. index readout: 1 tr = 1 m³ – 1m³ = 1 imp [LF]
  26. index connector: 1x Binder 423 – 6 pins Male
  27. test medium: Air under atmospheric conditions
  28. number of testpoints: 3 test points
  29. packing: Carton
  30. tag plate: —
  31. documents : Installation manual; Combined Inspection + Calibration certificate;
    Declaration of conformity; language of documents: EN
  32. accessories: Oil Morlina (total 100 ml)
  33. 1x Binder 423 -connector – Female

Test point flows: Qmax, 25%, Qmin
ATEX marking: II 2 G Ex h IIC T4..T6 Gb (-40°C ≤ Ta ≤ +70°C)
