FMR-G40-DN50

 1.485,00

Artikelnummer: FMR-G40-DN50-1 Categorie:

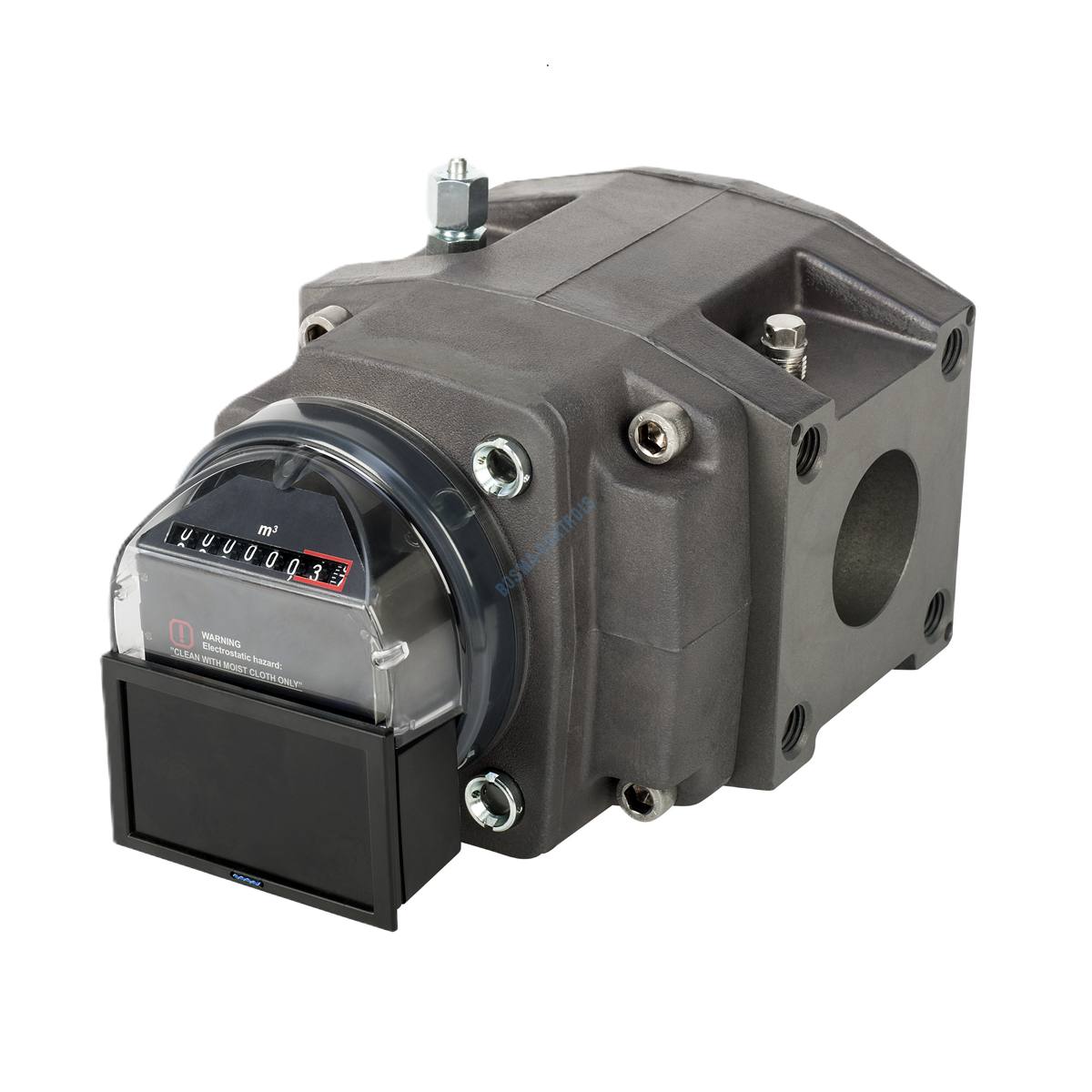

FMR Rotorgasmeter G40
Meetbereik: 0.65-65m³/h
Aansluiting DN50-PN16
Bouwlengte: 171mm
Uitgang: LF

Beschrijving

  1. model: FMR G040 DN050 – PN 16 0.61dm³
  2. size / flange connection: DN050 – PN 16
  3. meterbody material: Aluminium
  4. coating: Standard Hard Anodized
  5. installation length: 171 mm
  6. volume: 0.61 dm³
  7. meter shape: Uni-Directional (except Bottom-Top)
  8. flow direction preset: Left-Right
  9. approval: T10372-MID: Class 1 – Standard accuracy according to OIML R137
  10. measuring range: G040: Qmax = 65 m³/h, Qmin = 0.65 m³/h
  11. medium: Natural gas (CH4)
  12. classification: Group 1
  13. pressure range: 0 – 16 bar
  14. temperature range: -25 °C / 55 °C
  15. press. measuring point: 2x 1/4NPT Plugged (sealable)
  16. temp. measuring point: 1x External Thermowell 1/4NPT with Swivle, 1x Plugged (sealable)
  17. high frequency pulser: Prepared for Optical sensor
  18. lubrication option: —
  19. mounted options: n.a.
  20. index head type: Basic Index (IP67)
  21. electronic options: 2xLF + 1xTamper – 3711 Reed Switch Unit
  22. mechanical options: n.a.
  23.  –
  24. index readout: 1 tr = 1 m³ – 1m³ = 10 imp [LF]
  25. index connector: 1x Binder 423 – 6 pins Male
  26. test medium: Air under atmospheric conditions
  27. number of testpoints: 3 test points
  28. packing: Carton
  29. tag plate: —
  30. documents : Installation manual; Combined Inspection + Calibration certificate;
    Declaration of conformity; language of documents: EN
  31. accessories: Oil Morlina (total 100 ml)
  32. 1x Binder 423 -connector – Female

Test point flows: Qmax, 25%, Qmin
ATEX marking: II 2 G Ex h IIC T4..T6 Gb (-40°C ≤ Ta ≤ +70°C)
